120-M-211-SMD

Header

Horizontal plug-in, with side walls

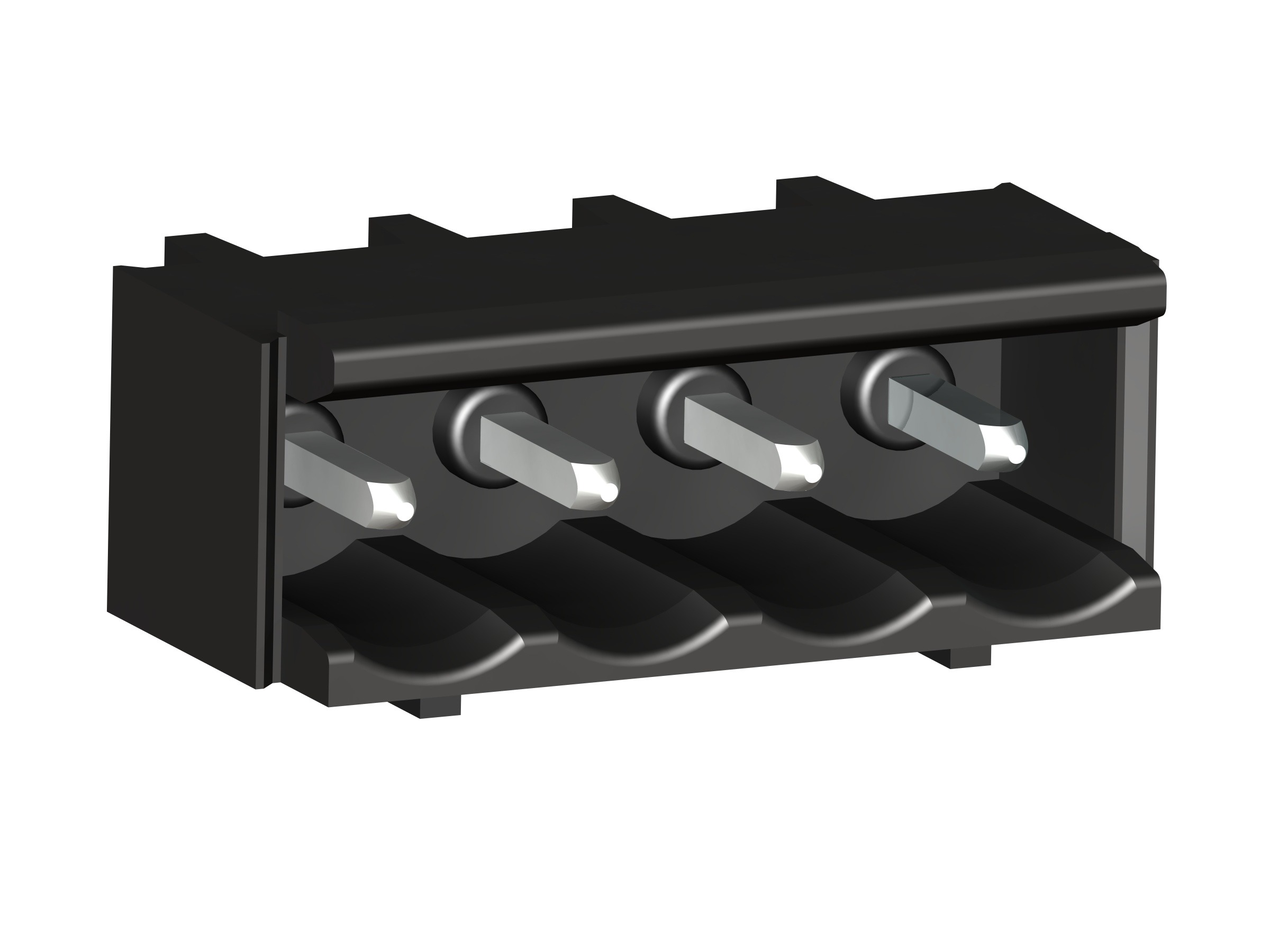

https://wecoconnectors.com/wp-content/uploads/Images/120-M-211-SMD-R.JPG

DESCRIPTION

L-shape exposed leads confer an extremely reliable retention force to PCB. This characteristics allows reliable soldering to PCB approaching zero defects for this characteristic and its effects. The top surface of the connector ensures automated Pick&Place-ability for both odd and even pole versions. Material will handle reflow temperatures well without deforming or melting. Product shall be mounted on PCB to expose connector entry in the cut-off window of the metal or plastic enclosure. This installation mode prevents vertical peel-off stress against the L-shape solder joints during plug-in installation test. Standoffs underneath the molding ensure that connector housing keeps its horizontal position relative to PCB plane. Packed in magazines, this genuine SMD terminal is suitable for the automatic assembly.

GENERAL INFORMATION

Pitch: 5.00 mm

No. of poles: 2 - 12

Usable with: plug with 120-A-111

TECHNICAL DATA

Over Voltage Category

III

III

II

Pollution Severity Level

3

2

2

Rated Voltage

250 V

320 V

630 V

Rated Impulse Voltage

4 kV

4 kV

4 kV

Rated current: 12 A

Soldering Process: Reflow solder

Rated insulation voltage: 250 V acc. to EN 60998-1

RATINGS

Current
[A]
Voltage
[V]
Group

AWG

Torque
[Nm]
15 300 B
10 300 D, E
15 300 B
10 300 D, E
Download PDF

TECHNICAL DRAWINGS

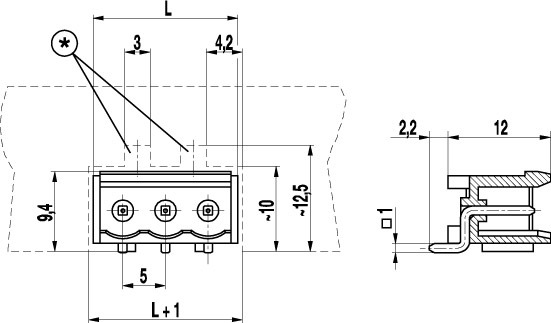

120-M-211-SMD.JPG - technical drawing 1
https://wecoconnectors.com/wp-content/uploads/Images/120-M-211-SMD-LPL.JPG - technical drawing 1

MATERIALS

Moulding: PA HT, black, V-0

Comparative tracking index: CTI ≥ 600

Insulating group: I

Temperature range: -40°C up to 120°C; reflow solder temperature peak max. 255°C acc. to DIN EN 61760-1

Solder pin: 1,0 x 1,0 mm; tin plated brass

OPTIONS / ACCESSORIES

  • Consecutive numbering
  • Special marking according to drawing
  • Self-adhesive marking strip BST-5,00 [1]
  • Tape-on-Reel on request

Notes

STANDARD CONFIGURATIONS

Poles Items Part # Length L [mm] Step 3D PDF
02 120-M-211-SMD/02 30.806.352 12.00
03 120-M-211-SMD/03 30.806.353 17.00
04 120-M-211-SMD/04 30.806.354 22.00
05 120-M-211-SMD/05 30.806.355 27.00
06 120-M-211-SMD/06 30.806.356 32.00
08 120-M-211-SMD/08 30.806.358 42.00
