121-M-111 /-211

Header

Horizontal plug-in

TECHNICAL DRAWINGS

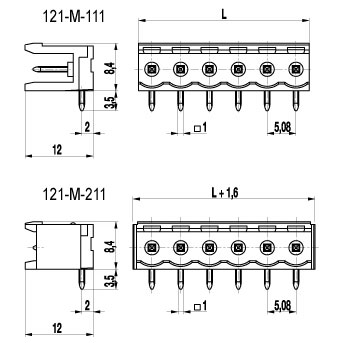

121-M-111 - technical drawing 1

DESCRIPTION

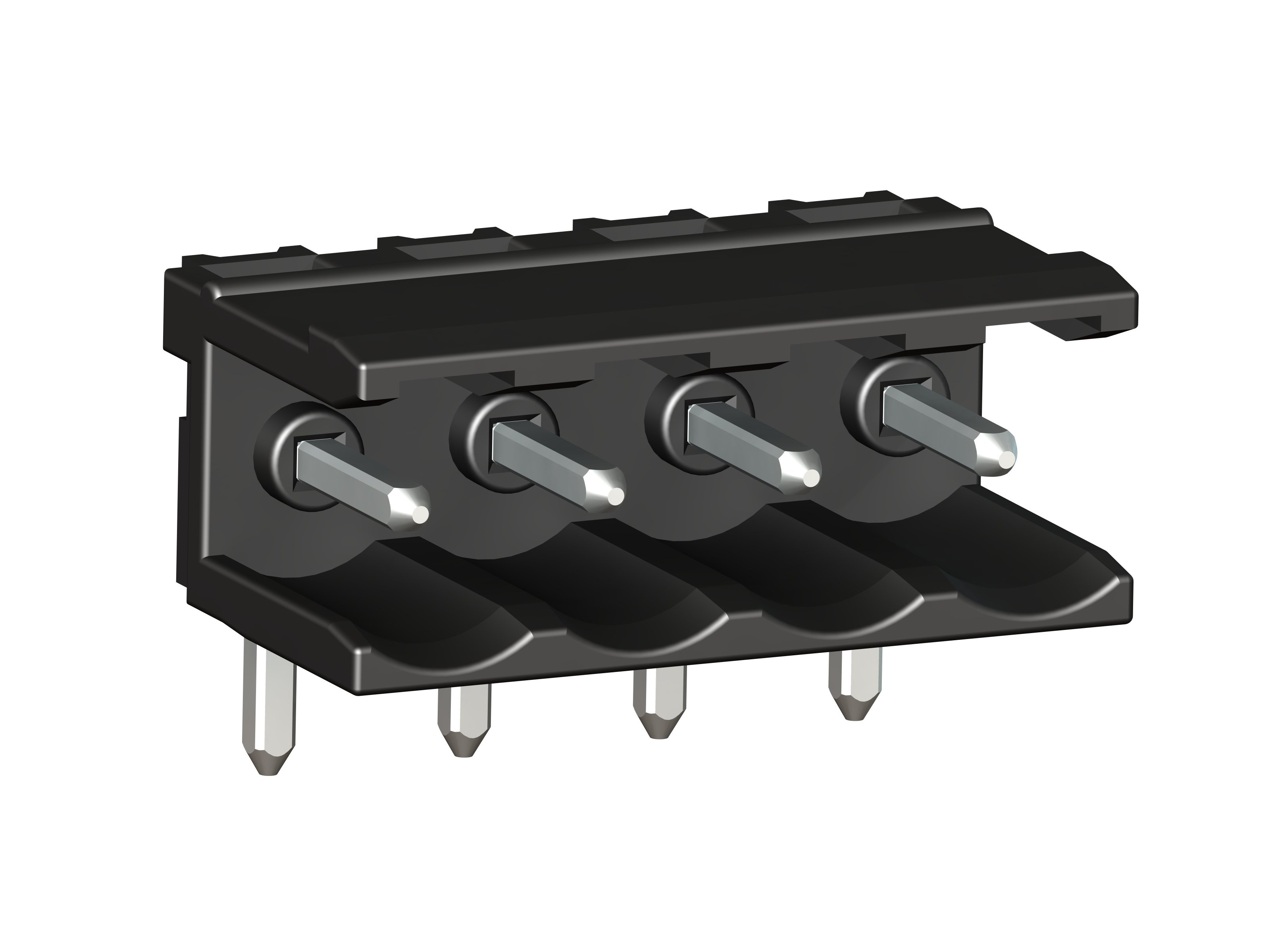

The pin strips 121-M-111 und 121-M-211 with a pitch of 5,08 mm are available in 2- to 12-pole design. The ..-M-111 version is a pin strip without side walls and can be mounted side-by-side without pole loss. The ..-M-211 version is a pin strip with closed side walls. For both versions, the plug direction for mating plug connectors is parallel to the PCB. For each pole, the pin strips have one trapezoidal coding slot in which the coding elements 120-K can be inserted.

STANDARD CONFIGURATIONS

Poles Master Item Part # Child Item Part # Length L [mm] Step 3D PDF
02 121-M-111/02 10.806.102 121-M-211/02 10.806.126 10.16
03 121-M-111/03 10.806.103 121-M-211/03 10.806.127 15.24
04 121-M-111/04 10.806.104 121-M-211/04 10.806.128 20.32
05 121-M-111/05 10.806.105 121-M-211/05 10.806.129 25.40
06 121-M-111/06 10.806.106 121-M-211/06 10.806.130 30.48
07 121-M-111/07 10.806.107 121-M-211/07 10.806.131 35.56
08 121-M-111/08 10.806.108 121-M-211/08 10.806.132 40.64
09 121-M-111/09 10.806.109 121-M-211/09 10.806.133 45.72
10 121-M-111/10 10.806.110 121-M-211/10 10.806.134 50.80
11 121-M-111/11 10.806.111 121-M-211/11 10.806.135 55.88
12 121-M-111/12 10.806.112 121-M-211/12 10.806.136 60.96
Download PDF Order

GENERAL INFORMATION

Pitch: 5.08 mm

No. of poles: 2 - 12

Usable with: plugs with 121-A-111, 121-D-111, 121 series

Additional information: Ordering information:..-M-111: without side walls..-M-211: with side walls

TECHNICAL DATA

Over Voltage Category

III

III

II

Pollution Severity Level

3

2

2

Rated Voltage

250 V

320 V

630 V

Rated Impulse Voltage

4 kV

4 kV

4 kV

Rated current: 12 A

Rated insulation voltage: 250 V acc. to EN 60998-1

Hole in PCB: ø 1.4 mm

MATERIALS

Moulding: PA, grey, V-0

Comparative tracking index: CTI ≥ 600

Insulating group: I

Temperature range: -40°C up to 100°C

Solder pin: 1,0 x 1,0 mm; tin plated brass

RATINGS

Current
[A]
Voltage
[V]
Group

AWG

Torque
[Nm]
15 300 B
10 300 D
300 15 B
10 D, E

OPTIONS / ACCESSORIES

  • Consecutive numbering
  • Special marking according to drawing
  • Self-adhesive marking strip BST-5,08
  • Pitch of 10,16 mm for larger clearance and creepage distances
  • Other solder pin lengths on request
  • Coding elements 120-K
  • Connectors equipped with coding elements on request
