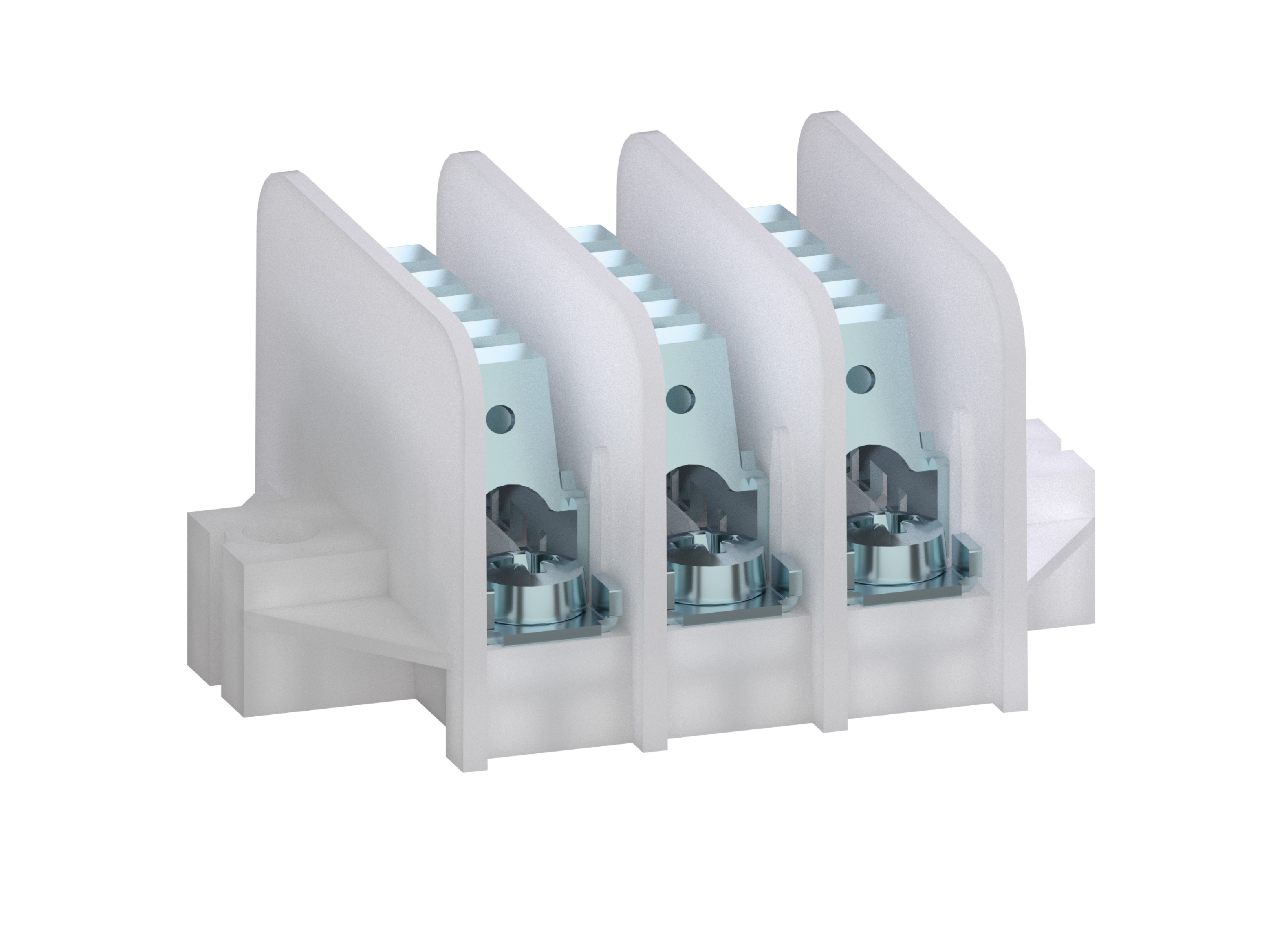

308-PA/..-401 , 308-PAG/..-401

Distributor strip

Tab connections 5 x 6.3 & Screw connection; slanted

STANDARD CONFIGURATIONS

Poles Items Part # Items Part # Length L [mm] Step 3D PDF
01 308-PA/01-401 11.885.401 308-PAG/01-401 11.888.401 30
02 308-PA/02-401 12.885.401 308-PAG/02-401 12.888.401 41
03 308-PA/03-401 13.885.401 308-PAG/03-401 13.888.401 52
04 308-PA/04-401 14.885.401 308-PAG/04-401 14.888.401 63
05 308-PA/05-401 15.885.401 308-PAG/05-401 15.888.401 74
06 308-PA/06-401 16.885.401 308-PAG/06-401 16.888.401 85
07 308-PA/07-401 17.885.401 308-PAG/07-401 17.888.401 96
08 308-PA/08-401 18.885.401 308-PAG/08-401 18.888.401 107
10 308-PA/10-401 20.885.401 308-PAG/10-401 20.888.401 129
12 308-PA/12-401 22.885.401 308-PAG/12-401 22.888.401 151
Download PDF How to Order

GENERAL INFORMATION

Pitch: 11.00 mm

No. of poles: 1 - 16

TECHNICAL DATA

Clamping Range:

solid / flexible / AWG
0.5 - 2.5 mm² / 0.5 - 2.5 mm² / 20 - 14 AWG [1][2]

Rated cross section: 1.5 mm² [3]

Wire stripping length: 10 mm ± 0.5 mm

Rated current: 10 A with receptable 6.3; wire 1.5 mm² 16 A with receptable 6.3; wire 2.5 mm² 20 A with receptable 6.3; wire 4 mm²25 A with receptable 6.3; wire 6 mm²17.5 A with screw connection; wire 1.5 mm²

Rated insulation voltage: 450 V acc. to EN 60998-1

Torque: 1.7 Nm

Other specifications: Screw terminals are generally suitable for wires with identical wire type / cross-section.

MATERIALS

Moulding: PA, natural, V-2 (PAG-Version: PA glass fiber reinforced, natural, V-0)Details in brackets apply for "no flame" products

Comparative tracking index: CTI 250 (CTI 400)

Temperature range: RTI Str 90°C (130°C PAG-Version)

Screw: M4; Zinc plated steel, blue passivated

Tab: Zinc plated steel

RATINGS

Current
[A]
Voltage
[V]
Group

AWG

Torque
[Nm]
300 15 B 16 - 14[4] 1.7
10 D 16 - 14[4] 1.7
Current
[A]
Voltage
[V]
Cross Section
[mm2]
AWG

TORQUE

17.5 450 1.5

OPTIONS / ACCESSORIES

  • Consecutive Numbering
  • Special marking according to drawing
  • Fixed marking in the tool on request
  • Jumper VB-308

Notes
