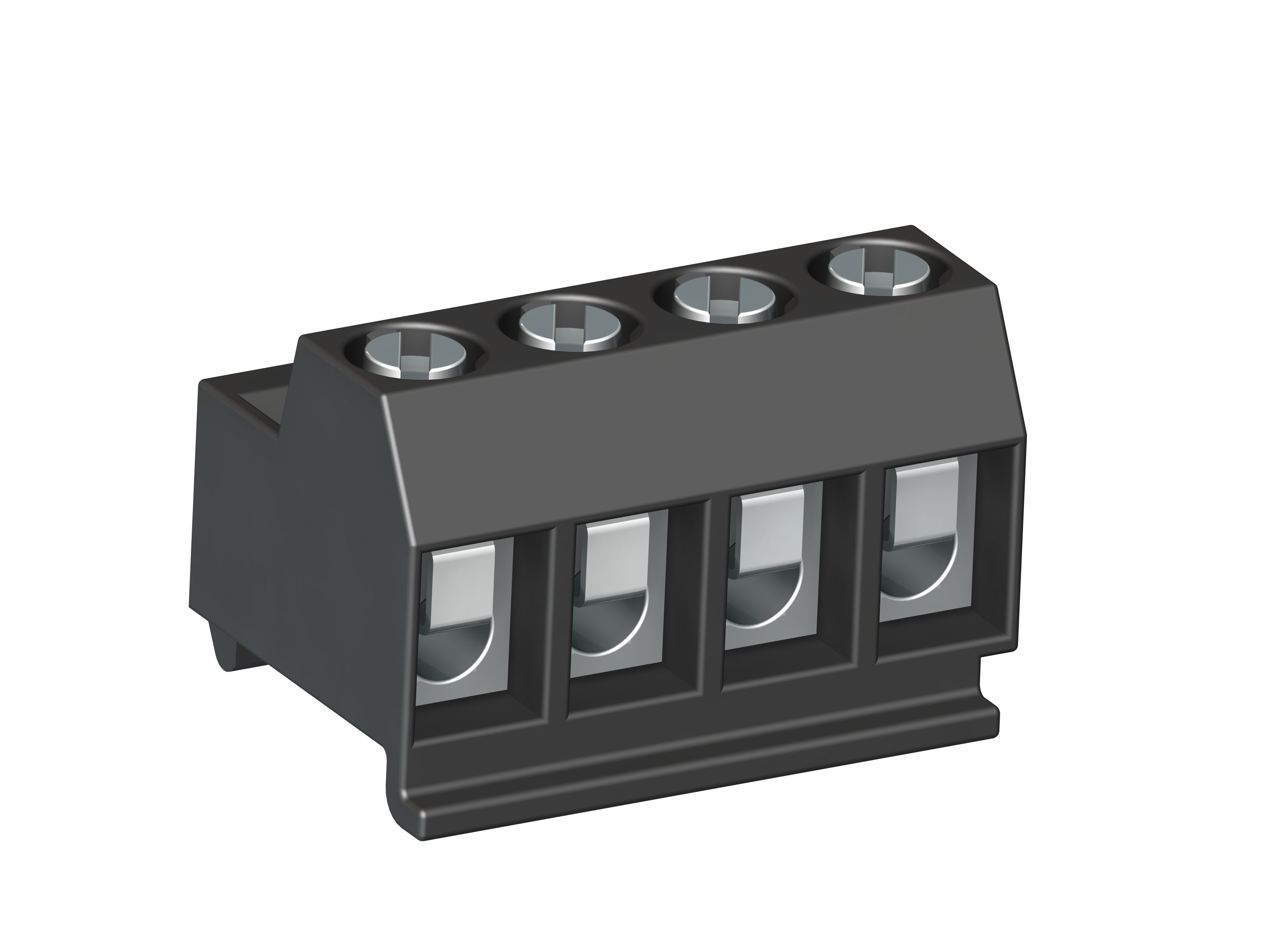

950-NLFL-DS

Plug Connector

Screw connection, with locking foot

TECHNICAL DRAWINGS

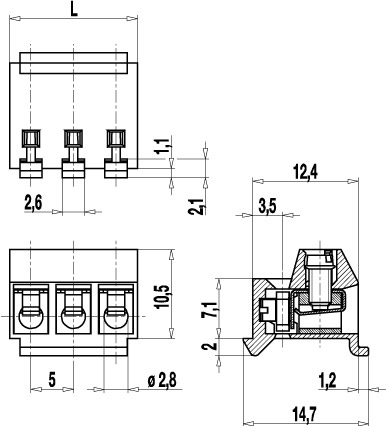

950-NLFL-DS - technical drawing 1

DESCRIPTION

Application example - thermostat housing: The plug connectors are snapped in the basic housing and their leads are wired externally. Subsequently, the control panel, equipped with corresponding pin strips, is connected from above.

STANDARD CONFIGURATIONS

Poles Master Item Part # Length L [mm] Step 3D PDF
02 950-NLFL-DS/02 20.871.772 10.00
03 950-NLFL-DS/03 20.871.773 15.00
04 950-NLFL-DS/04 20.871.774 20.00
05 950-NLFL-DS/05 20.871.775 25.00
06 950-NLFL-DS/06 20.871.776 30.00
07 950-NLFL-DS/07 20.871.777 35.00
08 950-NLFL-DS/08 20.871.778 40.00
09 950-NLFL-DS/09 20.871.779 45.00
10 950-NLFL-DS/10 20.871.780 50.00
11 950-NLFL-DS/11 20.871.781 60.00
12 950-NLFL-DS/12 20.871.782 65.00
Download PDF Order

GENERAL INFORMATION

Pitch: 5.00 mm

No. of poles: 2 - 12

Usable with: pin strips of 971 series

TECHNICAL DATA

Clamping Range:

solid / flexible / AWG
0.34 - 2.5 mm² / 0.34 - 1.5 mm² / 22 - 14 AWG

Rated cross section: 1.5 mm²

Wire stripping length: 6 mm ± 0.5 mm

Over Voltage Category

III

III

II

Pollution Severity Level

3

2

2

Rated Voltage

320 V

320 V

630 V

Rated Impulse Voltage

4 kV

4 kV

4 kV

Rated current: 6 A

Rated insulation voltage: 250 V acc. to EN 60998-1

Torque: 0.4 Nm

Other specifications: By use with pins LST-1,3: III-3-160V-2,5 kV

MATERIALS

Moulding: PA, black, V-0

Comparative tracking index: CTI ≥ 600

Insulating group: I

Temperature range: -40°C up to 100°C

Terminal body: Nickel plated brass

Spring: Tin plated tin bronze

Screw: M2.6; zinc plated steel, blue passivated

Wire protector: Tin plated tin bronze

RATINGS

Current
[A]
Voltage
[V]
Group

AWG

Torque
[Nm]
10 300 B 26 - 14 0.4
10 300 B 26 - 14 0.4

OPTIONS / ACCESSORIES

  • Consecutive numbering
  • Special marking according to drawing
  • Self-adhesive marking strip BST-5,00
  • Pitch of 10 mm for larger clearance and creepage distances
